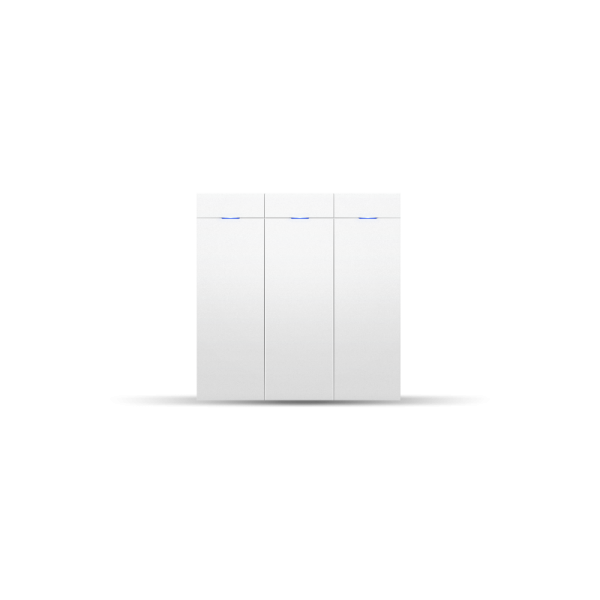

U series smart switch is a wall mounted switch built-in with Z-Wave 800 chip. With its stylish design and stable performance, the switch can be used to control house-hold electrical appliances like lamp, motor, coffee machine, TV set etc. In addition, it is able to be made as up to a 9-gang switch with a bracket and is widely used for the commercial buildings, schools, hospitals and etc. It supports basic command class，multi channel command class and multi channel association command class, also works as a repeater in a Z-Wave network. The device can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.
*Power Supply: AC90~250V, 50/60Hz
*Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.0 - 868.6 MHz, *869.7 - 870.0 MHz)
*Dimension: 86*86 mm
*Zwave 800 series, support S2 encryption, smart start (optional)
*Longest communication range reaches to 100m in outdoor spacious place
*Over Current Protection: U-CS1 required external 5A circuit breaker, U-CS2 required external 10A circuit breaker, U-CS3 required external 15A circuit breaker.
*Max output power of one single device is not over 2000W (Only for resistive load)
Wiring Diagram
