MH-S242

Name: MH-S242
Rating: 4.6 (89 reviews)

Select the number of specifications

Please check the product information you want!

MH-S242

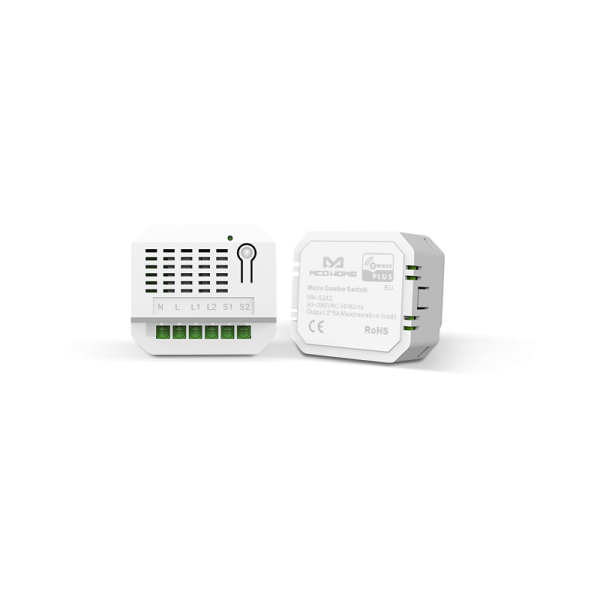

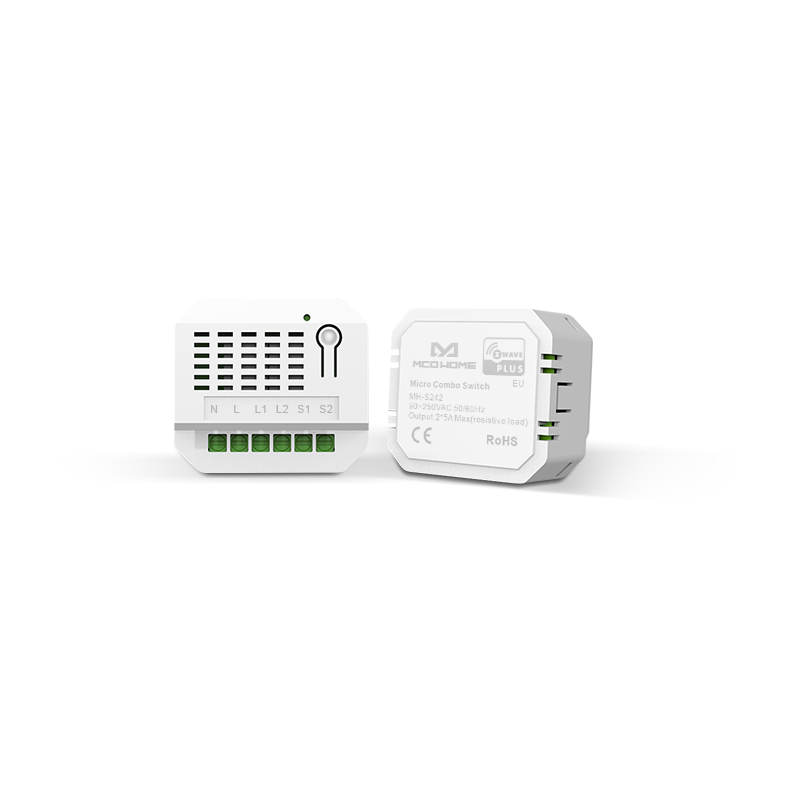

Micro Combo Switch is a smart wall switch module that can control light source via Z-Wave network, you can install it with traditional switch for both local and remote control. It supports basic command classes, and can act as a repeater in the Z-Wave network. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

Specification

Power Supply: AC85~260V, 50/60Hz

Z-Wave 800 series

Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.0 - 868.6 MHz, 869.7 - 870.0 MHz)

Maximum Transmitting Power: +3dBm

Dimension：44.8 *40.2 *22.3 mm (L *W *H)

Zero-cross detection

Support S2 security

Supported Load Type	Output
Resistive loads Conventional incandescent And halogen light sources	Max 2*5A
Resistive-capacitive loads Fluorescent tube lamp (compact/with electronic ballast), electronic transformer, LED	Max 2*1.7A
Resistive-inductive loads Ferromagnetic transformers	Max 2*1.7A
