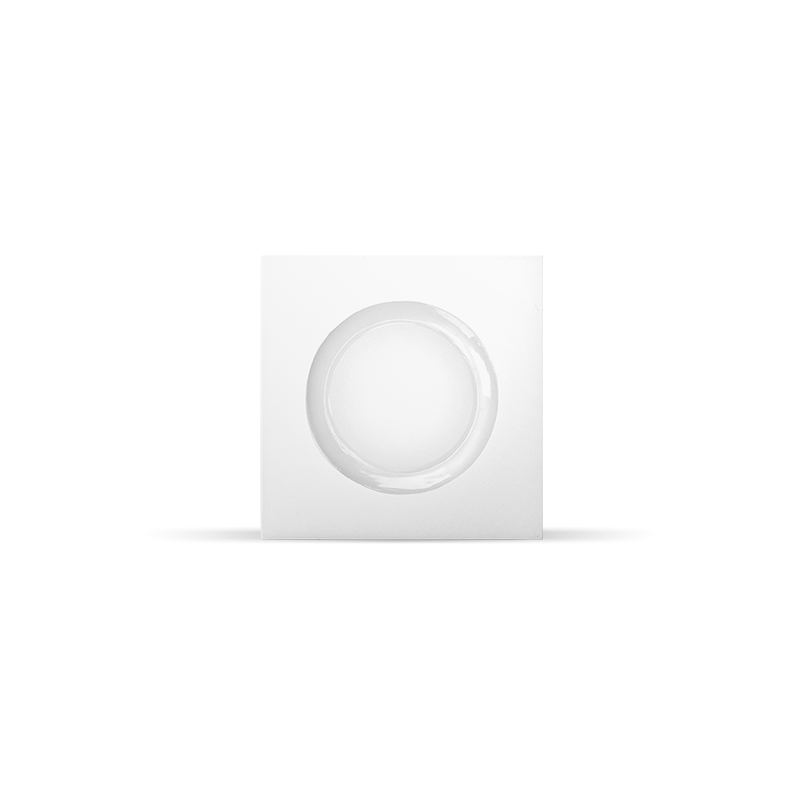

OS11/OS12 is a Z-Wave occupancy sensor based on 24GHz millimeter wave Doppler technology, it can accurately detect and distinguish motion, minor motion and even breathing signals to interact with lights, shutters, fans, air conditioning and various electrical appliances, as well as security alarm, person monitoring etc. Suitable for home, hotel, office and other places, not affected by temperature, humidity, noise, airflow, dust, light and other factors. Sensor can be added into any Z-Wave network, and is compatible with any other Z-Wave certified devices.
Specification
Power Supply: AC90-250V (optional DC12V)
Comes with 5A dry contact output
Ultra-low RF power output, harmless to human health
Maximum Transmitting Power: +13dbm
Visual LED indicator for pairing network or detecting the movement, minor motion, breathing
Operating Temperature: -10℃-50℃
Operating humidity: 20%-85%（non-condensing）
Z-Wave 800 series, support S2 encryption
Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.4 MHz, or other regions 908.4/916.0 MHz , 921.4 MHz)
Housing: V0 flame-retardant PC material
Installation: Top-mounted or wall-mounted
Detecting range
3db horizontal beam angle up to 80°, vertical beam angle up to 85°, with high accuracy and wide detection range.
Maximum range of respiratory presence: 2-3m in diameter
Maximum range of minor presence: 3-4m in diameter
Maximum range of motion presence: 5-8m in diameter
The switch time of detecting absence or presence: within 0.5sec
