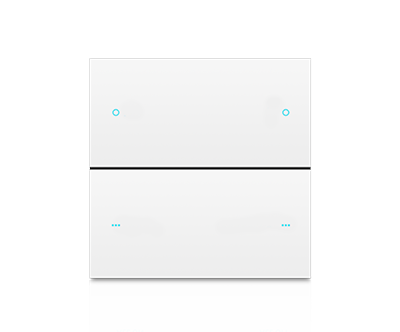

Keypad Switch K-ES2

The K-Series Keypad is a wall panel built-in with Z-Wave Plus module. With its stylish design and stable performance, the panel can be used to control house-hold electrical appliances like lamp, motor, coffee machine, TV set etc. It supports basic command class，multi channel command class and multi channel association command class, also works as a repeater in a Z-Wave network. The device can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

Specification

Premium PC finish

Dimensions: 86*86*37mm

Push-button, natural and comfortable push feedback

Led indicator and icon backlight

Arctic white, Space gray, Dark black

Power Supply: AC85~260V, 50/60Hz

700 series, S2 security

Z-Wave Frequency: All frequency available

Maximum Transmitting Power: +3dBm

Active Element: Relay switch μ

Over Current Protection: K-ES2 required external 15A circuit breaker

 Max Load:

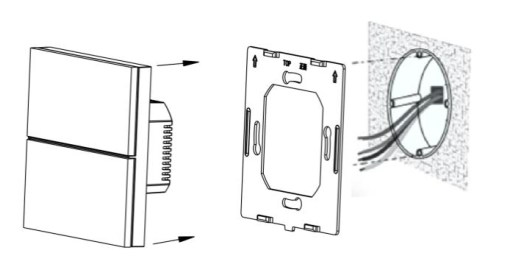

Installation

Wiring Diagram
