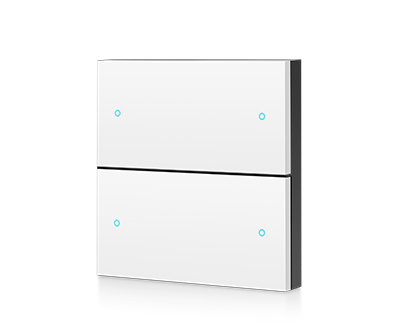

The K-Series Keypad is a wall panel built-in with Z-Wave Plus module. With its stylish design and stable performance, the panel can be used to control house-hold electrical appliances like lamp, motor, coffee machine, TV set etc. It supports basic command class，multi channel command class and multi channel association command class, also works as a repeater in a Z-Wave network. The device can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.
Specification
l Premium PC finish
l Dimensions: 86*86*37mm
l Push-button, natural and comfortable push feedback
l Led indicator and icon backlight
l Arctic white, Space gray, Dark black
l Power Supply: AC85~260V, 50/60Hz
l 700 series, S2 security
l Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.0 - 868.6 MHz, 869.7 - 870.0 MHz)
l Maximum Transmitting Power: +3dBm
l Active Element: Relay switch μ
l Over Current Protection: K-CS2 required external 15A circuit breaker, K-CS4 required external 20A circuit breaker

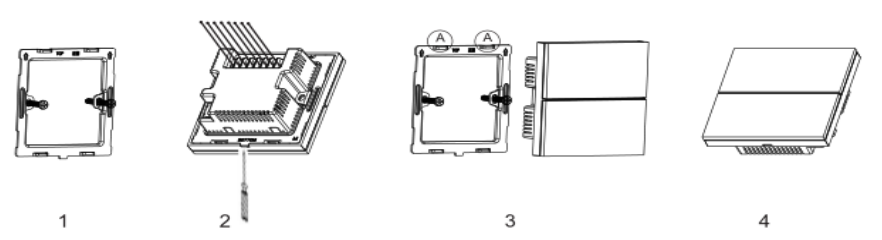

Innstallation

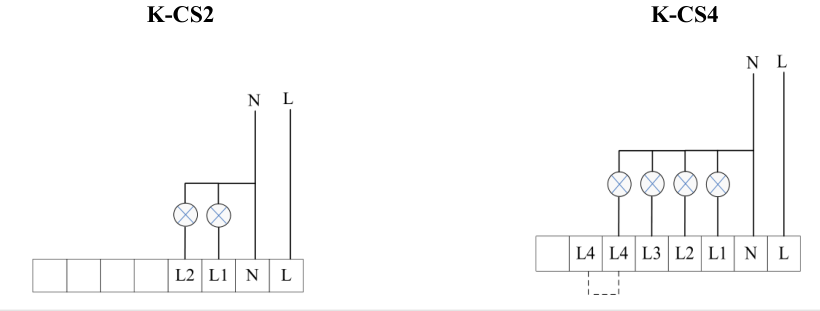

Wiring Diagram
