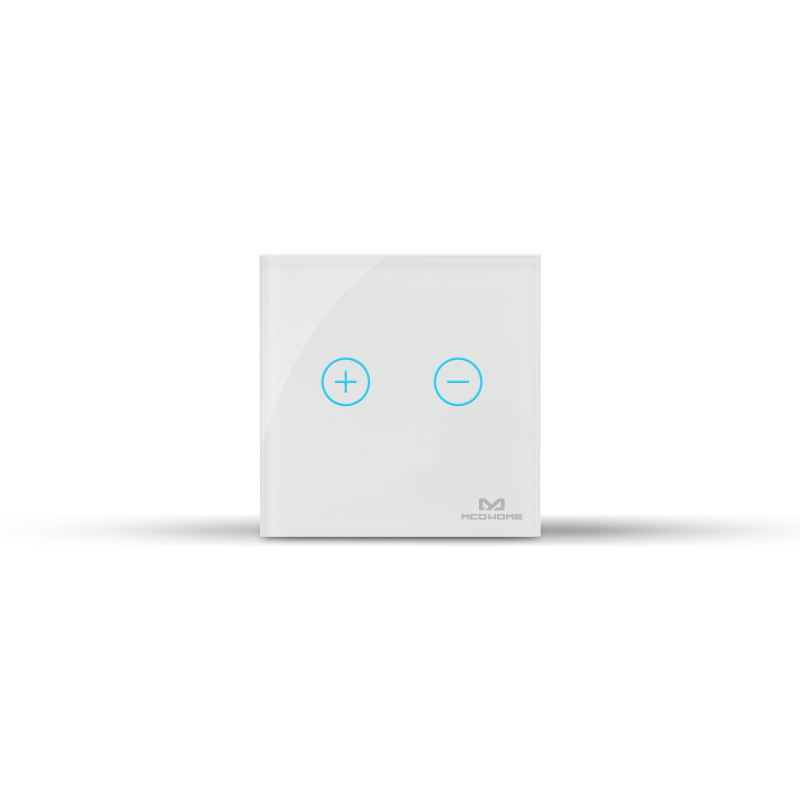

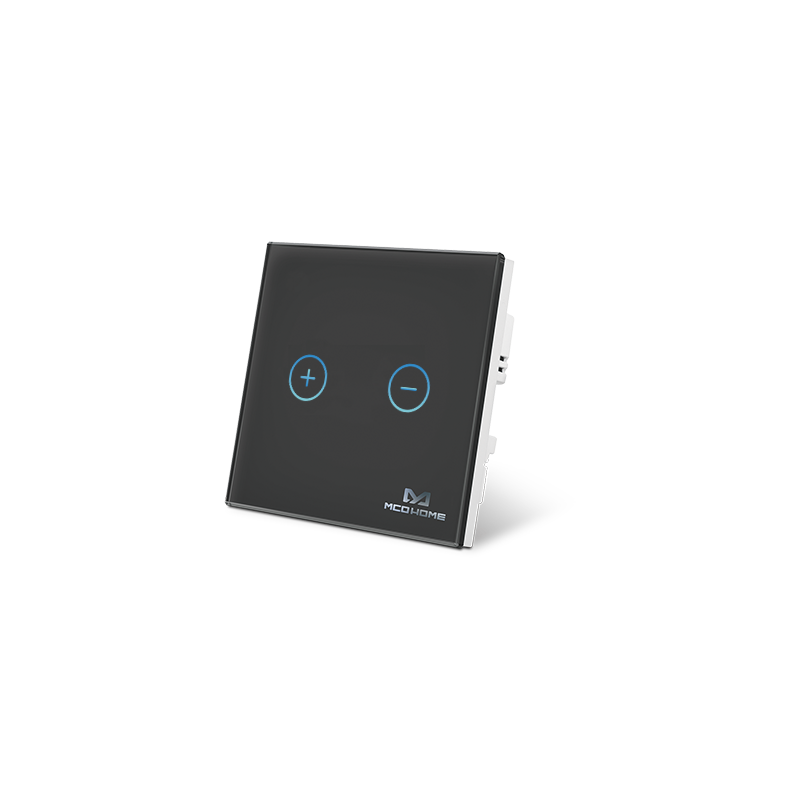

MH-DT311

Dimmer Switch is a wall panel built-in with Z-Wave Plus module. With its stylish design and stable performance, the panel can be used to control the light level.  It supports basic command class，multi channel command class and multi channel association command class, also works as a repeater in a Z-Wave network. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

Technical Parameter

Power supply: 85~260VAC, 50/60Hz

With energy metering

Z-Wave frequency: 868.42MHz(EU), 908.42MHz(US), 921.4MHz(AU) or other frequency customized

Installation: flush mounted in 86mm junction box

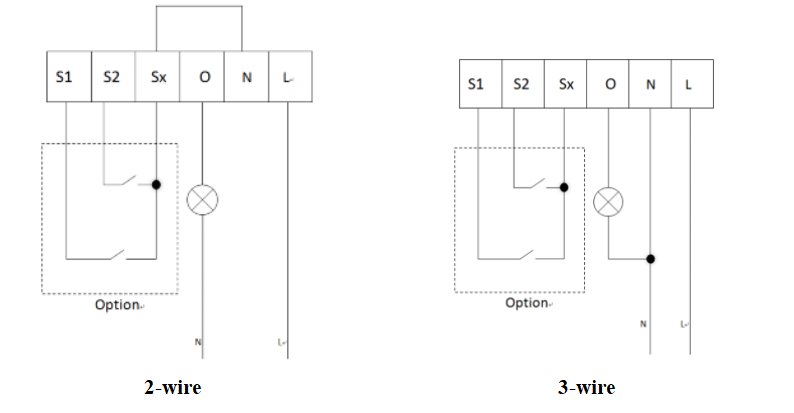

Wiring Connection

Please download the user manual to get further reference.
