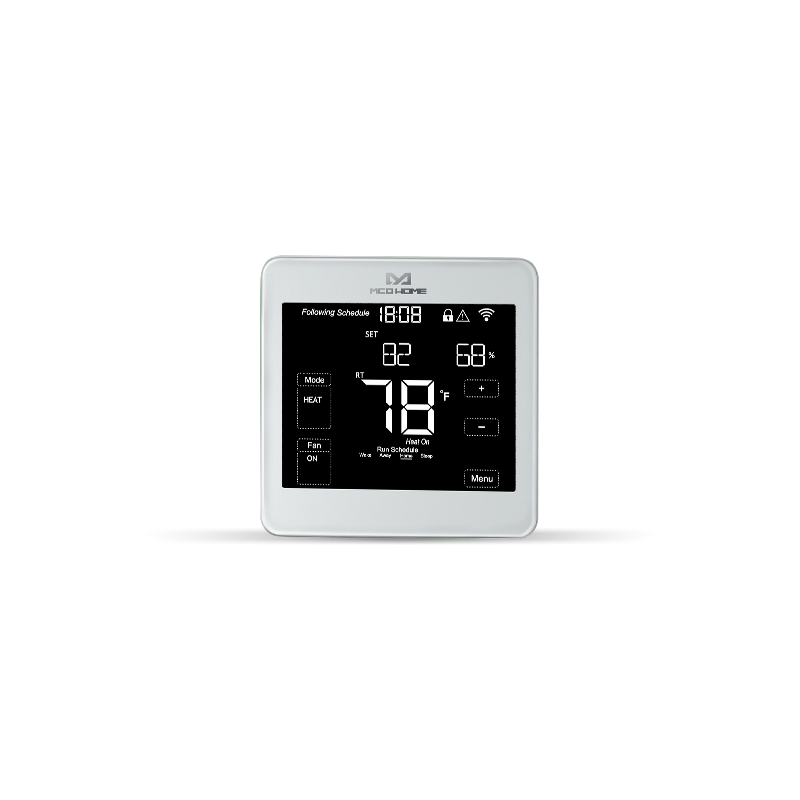

MH-F500

It is with tempered touch sensitive screen, quick connecting terminals to save installer’s time.

7days programmable and four modes everyday, make users’ life convenient and comfortable.

Please download the user manual to get further reference.

   Power supply: AC24V

   Self-consumption: <2w

   Resistive load:＜1A

   Thermistor: NTC thermistor

   Temp. Setting range：10～37℃

   Precision：0.1℃(1℉)

   Wire connection：Terminals

   Outcase：Tempered glass + PC

   Dimension：102*102*20mm

   Install：60mm or 82mm

   * Application range: gas/fuel boiler, electric heating, water heating, heat pump etc. 8 types control systems.

   * Z-Wave frequency: 868.42MHz(EU), 908.42MHz(US), 921.4MHz(AU) or other frequency customized

   * 4.3 inch LCM display, touch screen operation interaction.

   * Simpler way to connect wires without screw driver.

   * 7days 4 time periods scheduling. Set the target heating and cooling temperature respectively.

   * Schedule, hold modes for different situations.
