Multi-relay controller

MR8-ZW is a multi relay wireless controller, it can work with any Z-Wave certified gateway and control up to eight on/off loads remotely through Z-Wave network. It is applied for controlling heating equipments such as wall-mounted boiler, water pump, water valve and on/off valve. With Z-Wave wireless communication of eight channels, it is able to associate with up to eight thermostats to control eight room temperatures independently, as well as available to control each valve and monitor its state alone via gateway. It is built in with Z-Wave 800 series module and comes with the latest S2 security and a powerful Z-Wave Plus signal repeater to boost the network. Moreover, it is able to be customized to support Long Range Communicate of Z-Wave US frequency which is up to 1.5 miles.

Features

Power supply: AC85-260V, 50/60Hz

Dimension: 225*85*47mm

Outcase: ABS flame retardant grade

Wiring: terminals

Output: Up to control eight on/off relays

Contact type: water valve, water pump(active), wall-mounted boiler(passive)

1. Water valve: 3 terminals wiring, N& NO & NC, max load: 3A /load *8 (resistance)

2. Water pump: 2 terminals wiring, N & pump, max load: 5A (resistance)

3. Boiler: 3 terminals wiring, NO & COM & NC, max load: 1A (passive)

Z-Wave plus profile

Z-Wave 800 series

S2 security supported

OTA upgrade supported

Z-Wave SmartStart

Easy and error free secure inclusion

Z-Wave Frequency: operating frequency range, defined by the regulatory bodies (e.g. EU frequency: 868.4MHz, US frequency: 908.4MHz, AU frequency: 921.4 MHz or other Z-wave frequency customized)

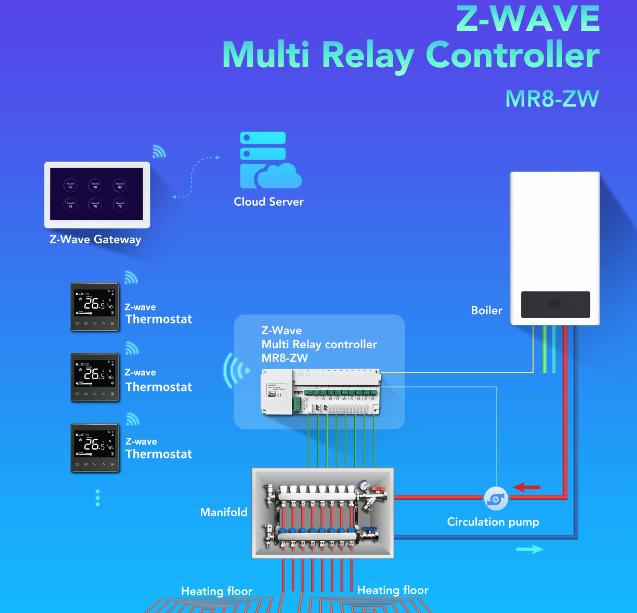

Application solution
