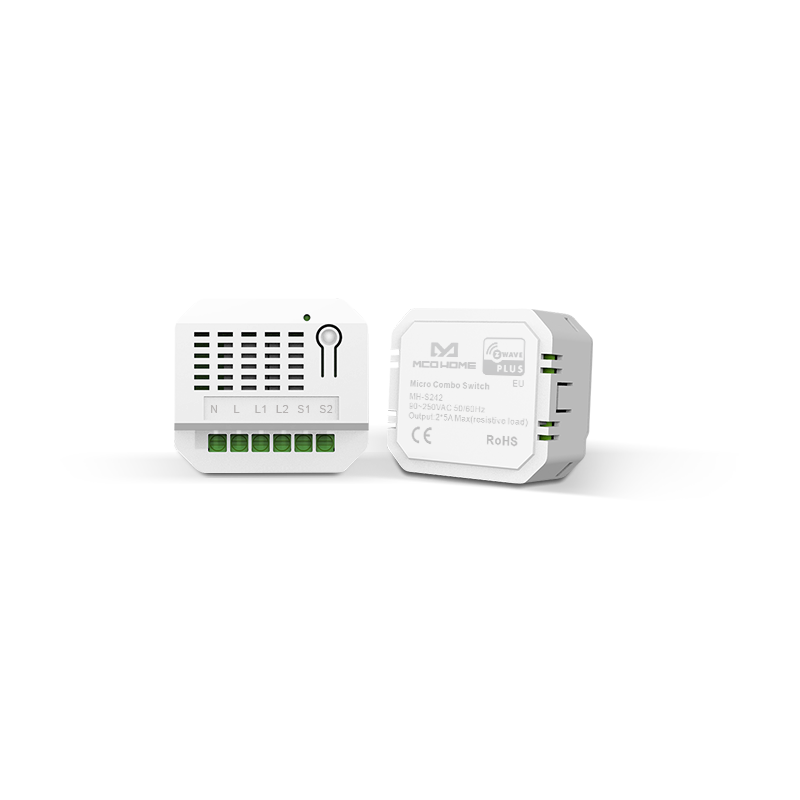

Micro Combo Switch is a smart wall switch module that can control light source via Z-Wave network, you can install it with traditional switch for both local and remote control. It supports basic command classes, and can act as a repeater in the Z-Wave network. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.
Specification
Power Supply: AC85~260V, 50/60Hz
Z-Wave 800 series
Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies (for Z-wave in Europe: 868.0 - 868.6 MHz, 869.7 - 870.0 MHz)
Maximum Transmitting Power: +3dBm
Dimension：44.8 *40.2 *22.3 mm (L *W *H)
Zero-cross detection
Support S2 security
Supported Load Type | Output |
Resistive loads Conventional incandescent And halogen light sources | Max 2*5A |
Resistive-capacitive loads Fluorescent tube lamp (compact/with electronic ballast), electronic transformer, LED | Max 2*1.7A |
Resistive-inductive loads Ferromagnetic transformers | Max 2*1.7A |
