MH-S612-SL

Non-Neutral touch panel switch is a wall panel built-in with Z-Wave 700 module. With its stylish design and stable performance, the panel can be used to control house-hold electrical appliances like lamp, motor etc. It supports basic command class，multi channel command class and multi channel association command class. The device can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

   Specification

    power Supply: AC90~260V, 50/60Hz

    Z-Wave Frequency: All frequency available

    Z-Wave 700 series

    Over Current Protection: MH-S612-SL required external 15A circuit breaker.

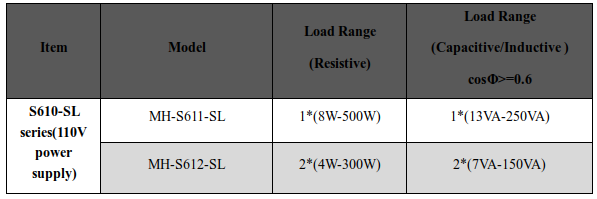

        Max load:

          Installation

        Wiring Diagram

﹒Z-Wave 700 series
﹒Power supply ：90V-260V,50/60Hz
﹒Loading range：<=600W/gang

﹒Minimum load required:3W compact fluorescent lamp/5W LED lamp/ 16W fluorescent lamp

﹒Working environment: 0~40℃, 5%-95%RH
