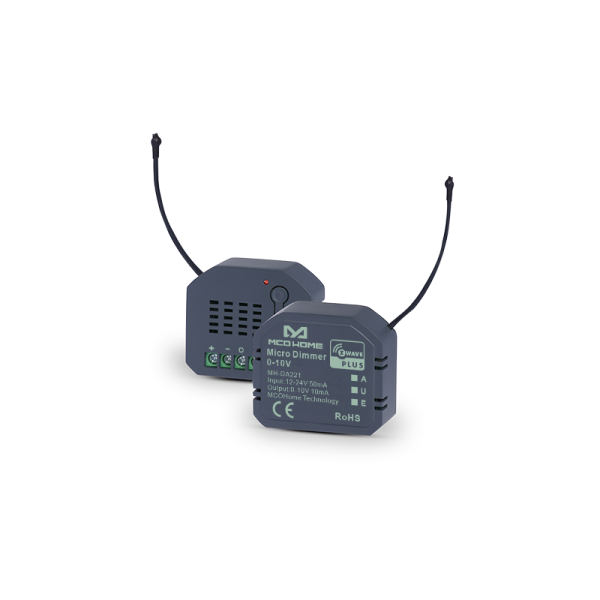

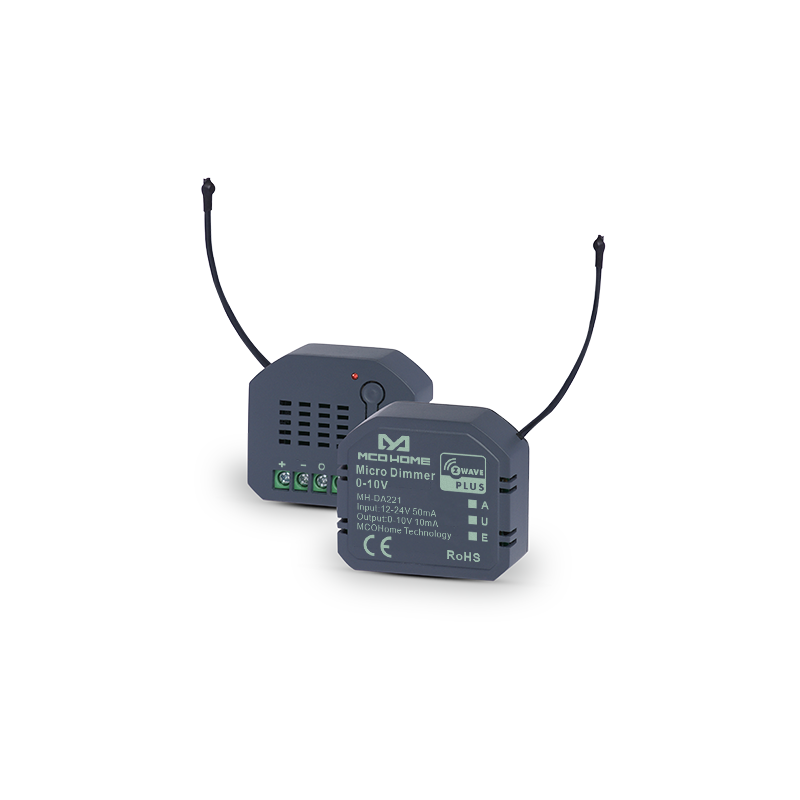

MH-DA221

Dimmer Module 0-10V is a smart wall dimmer with a standard 0-10V output and a multi-function

input, you can install it with traditional switch for both local and remote control. It supports push

-button/momentary switches, toggle switches and 0-10V inputs (requires external source). This

product can be included and operated in any Z-Wave network with other Z-Wave certified devices

from any other manufacturers.

Power supply： 12 - 24 VDC

Max. sourcing control voltage：0 - 11 VDC
Accuracy：<3% FS
Operation temperature：-10° ~ +50°C
Electricity consumption:0.5 W

Dimension：44 *38 *17mm (L *W *H)

In-wall Switch Type：push-button (momentary) ,on/off toggle switch,potentiometer,

0-10V temperature sensor,0-10V illumination sensor,0-10V general purpose sensor

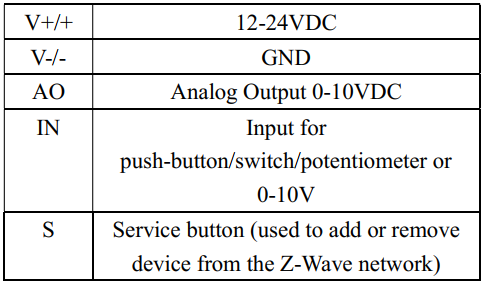

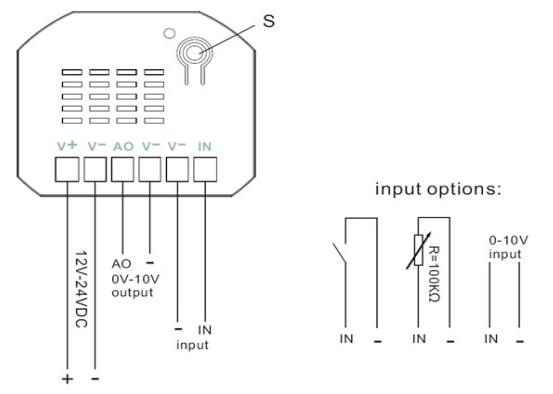

Wiring Diagram
