MH-D220

Micro Dimmer Switch is a Z-Wave Plus enabled module that can be set in existing in-wall switches.

With its compact design and stable performance, the module can be used to wire with an external panel and then dimming the lights.

It can auto detect the load type and choose suitable dimming mode (leading edge/ trailing edge),

and supports 2-wire or 3-wire circuit when installation.

It supports basic command class，multi channel command class and multi channel association command class, also works as a repeater in a Z-Wave network.

This product can be included and operated in any Z-Wave network with other Z-Wave certified modules

from any other manufacturers.

Technical Parameter

Power supply: 85~260VAC, 50/60Hz

Output: 1*Max (Resistive loads:20-200W;  Resistive-capacitive loads:30-160VA;  Resistive-inductive loads: 30-160VA )

Z-Wave frequency: 868.42MHz (EU), 908.42MHz (US) , 921.4MHz(AU) or other frequency customized

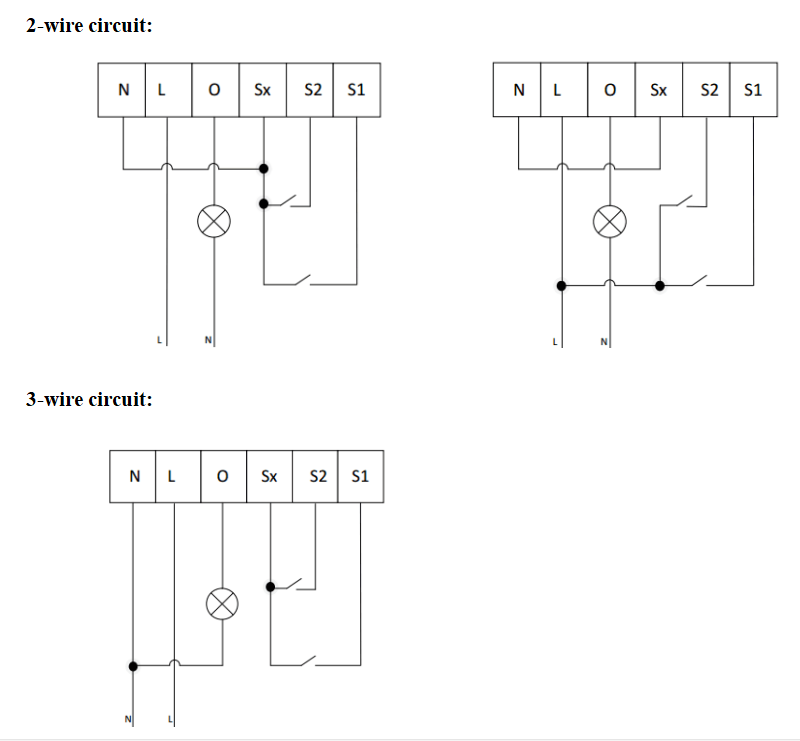

Wiring Connection

Please download the user manual to get further reference.
